Product Description

WS2130 CNC Industrial Hot Wire Foam Cutter Machine Table

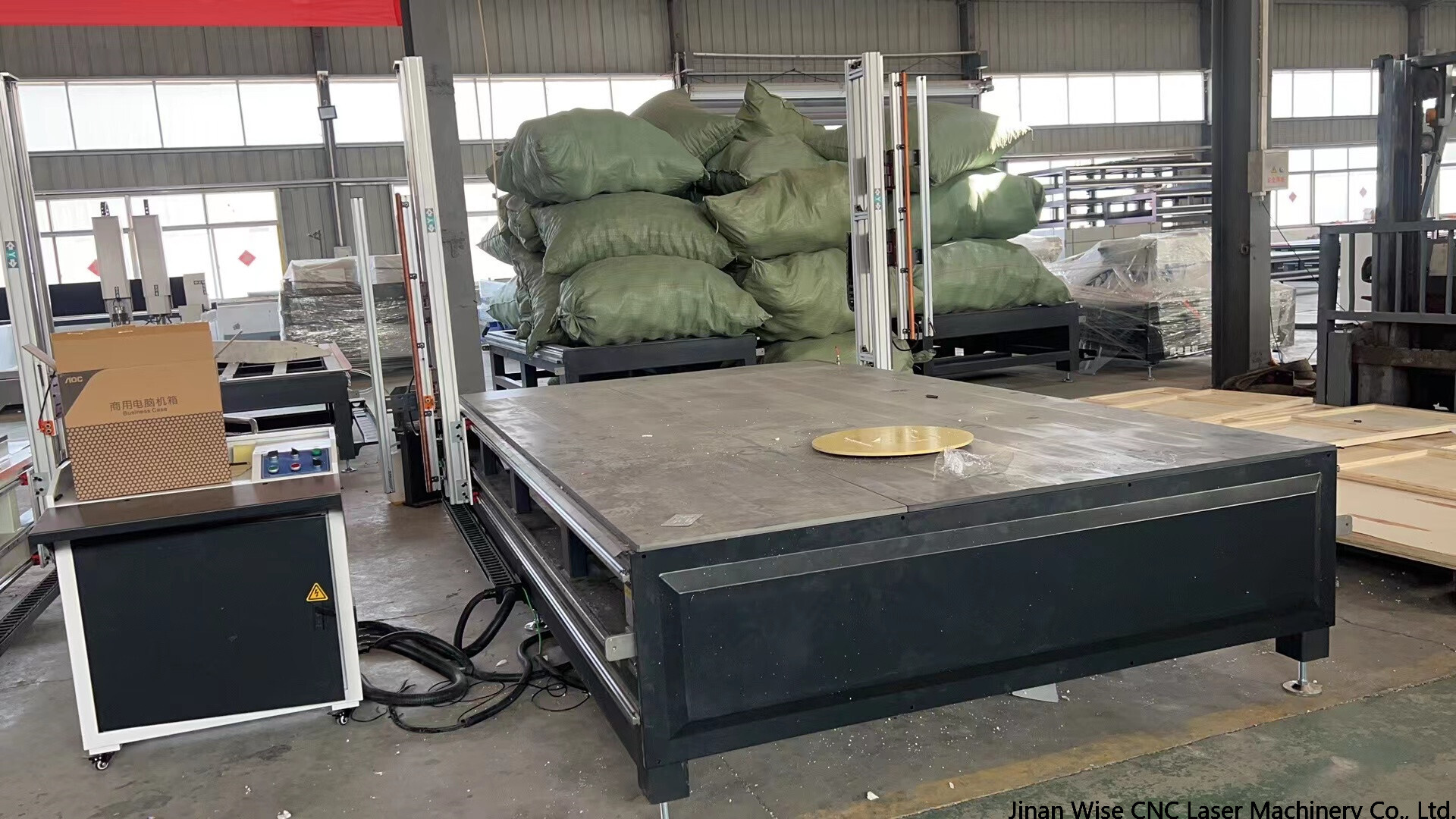

hot wire foam cutter.jpg

WS2130 hot wire foam cutter is a industrial foam cutting device used to cut foamed materials, such as polystyrene. This foam cutter is also commonly referred to as a hot wire foam cutter. A hot wire foam cutter may consist of a thin, taut wire, usually made of stainless steel, or use a thicker gauge wire that has been preformed into a specific shape. In either case, the wire is electrically heated to approximately 400 degrees Fahrenheit (205 degrees Celsius). As the hot wire is passed through the polystyrene, the heat effectively vaporizes the material before actual contact, producing a clean, straight cut. Hot wire cutters produce neat, smooth edges in foam materials that cannot be replicated with a knife or saw.

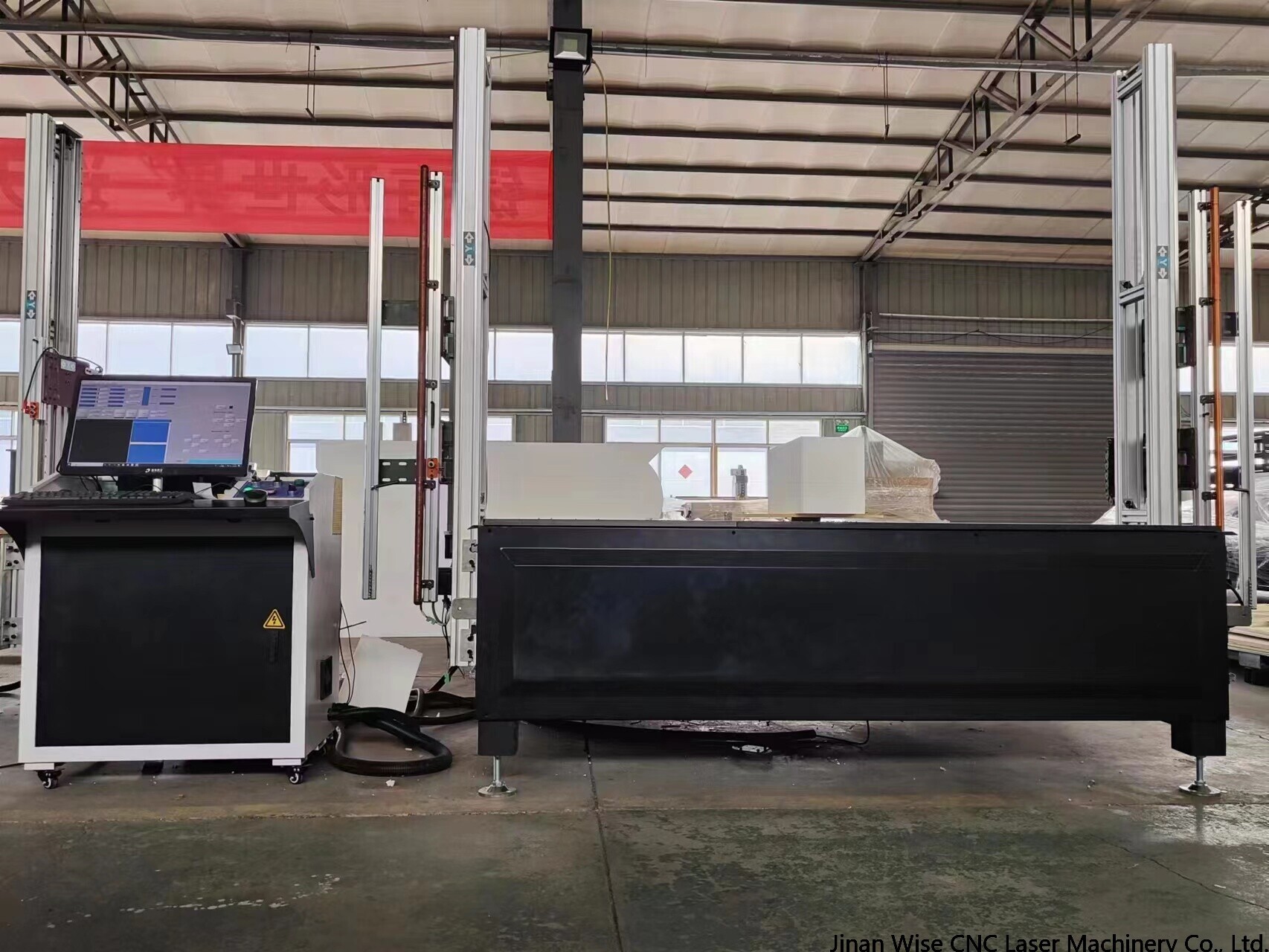

hot wire foam cuter table.jpg

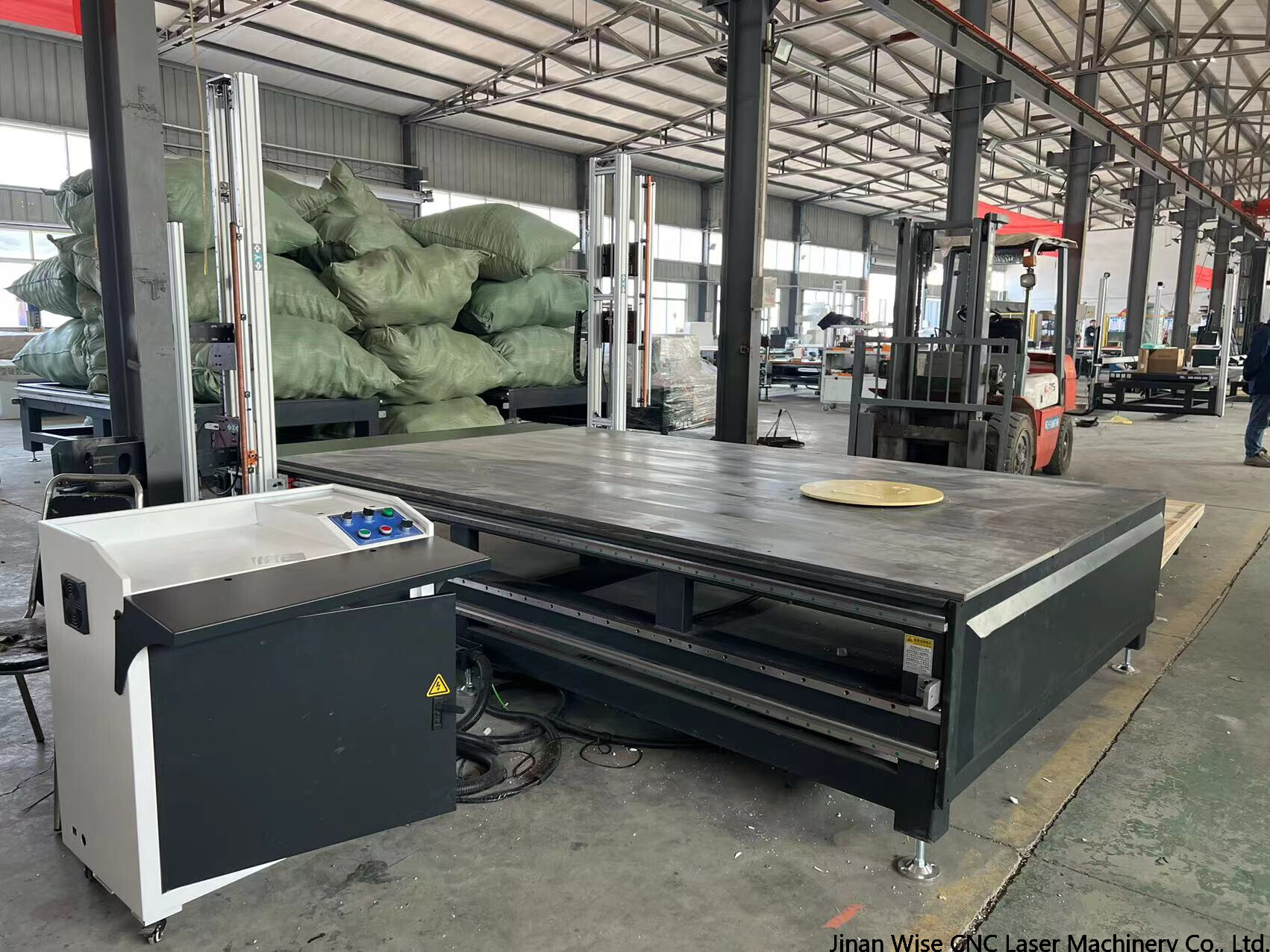

hot wire foam cutter cnc.jpg

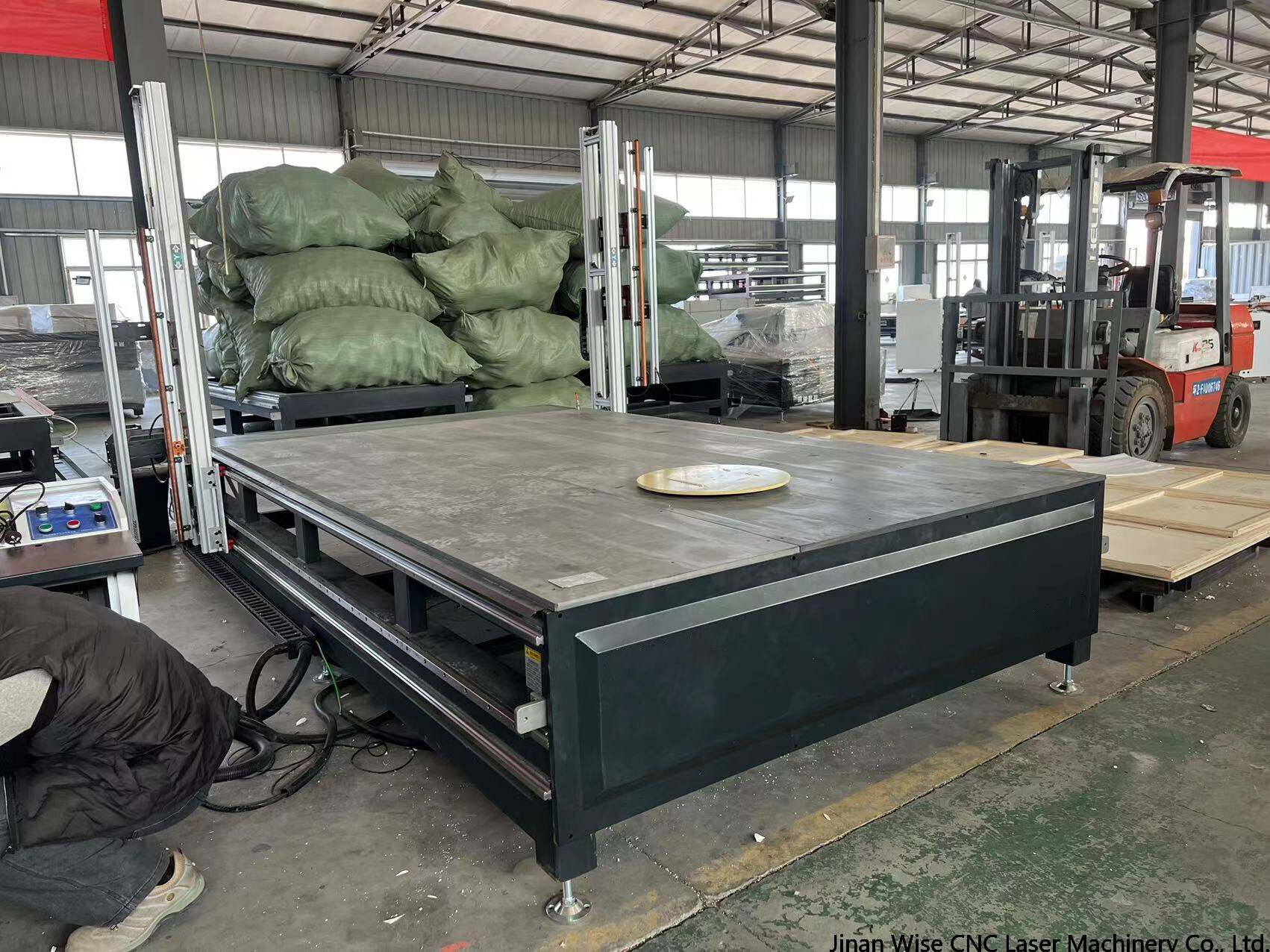

foam cutter.jpg

Trade Terms about WS2130 hot wire cutter:


Delivery time:within 10(standard model)to 20 days(customized model)working days after ordering

payment method:T/T 40% in advance to China bank,60% before delivery

Package:Sea-worthy strong fumigation-free plywood case

Warranty:  one year

Certificate: CE, ISO, SGS

After-sale service:Overseas service center available

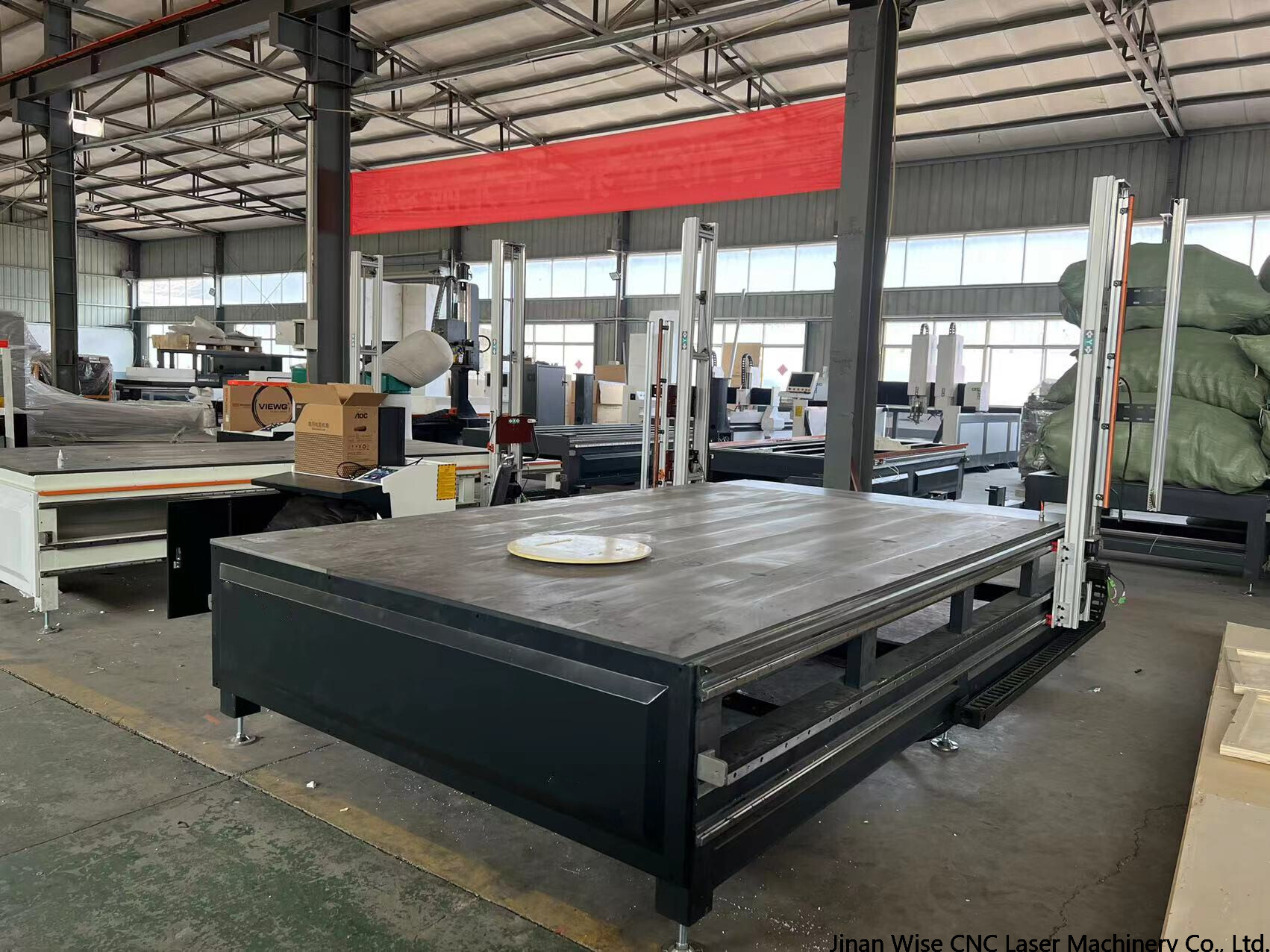

hot wire foam cutter machine.jpg

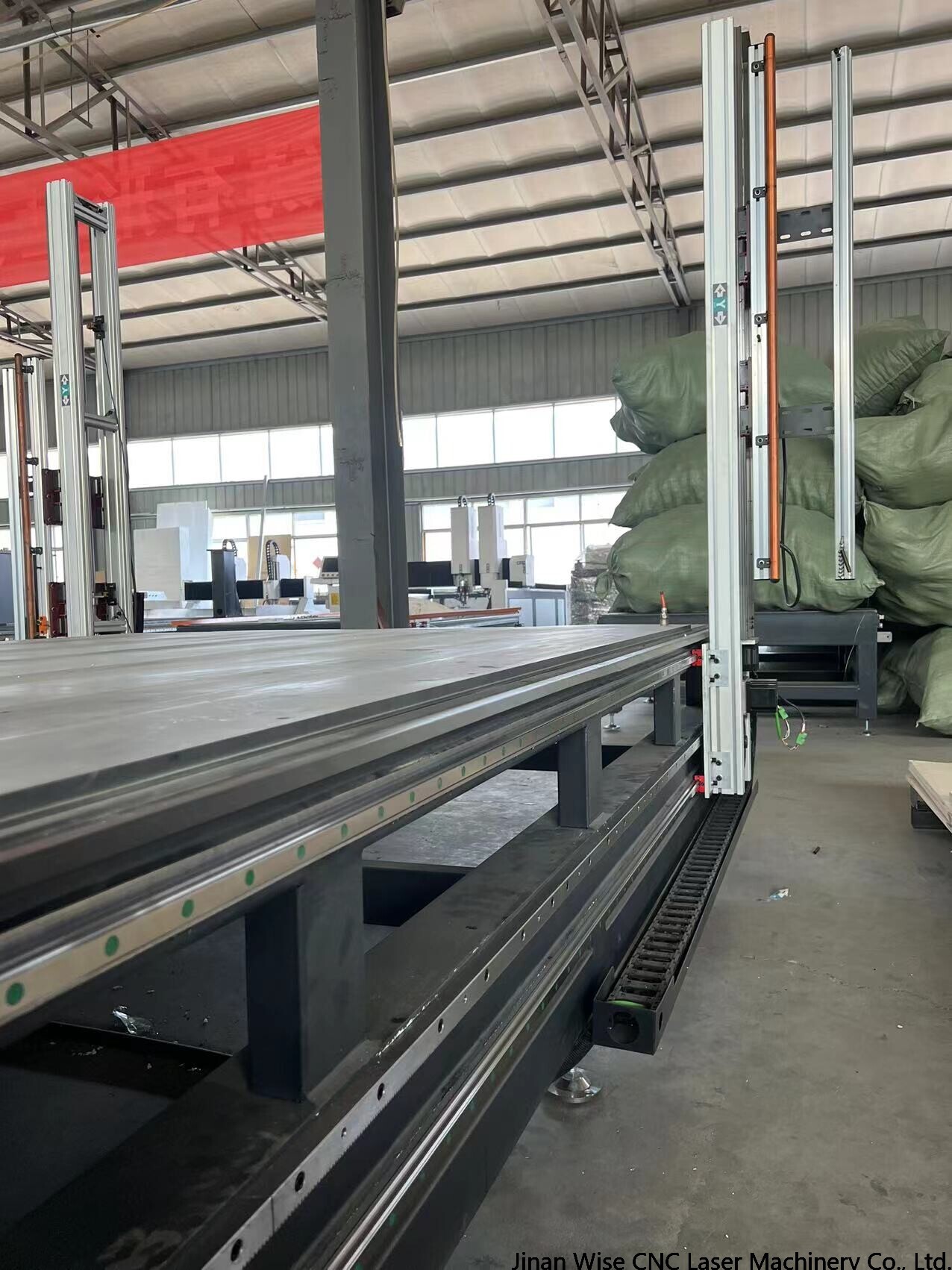

industrial hot wire foam cutter.jpg


Application of WS2130 hot wire foam cutter table:

Applicable material: Styrofoam, EPS, polypropylene plastic foam material, XPS extruded board

Applicable industry: advertising industry, packaging industry, construction building industry, lost foam mold industry etc.

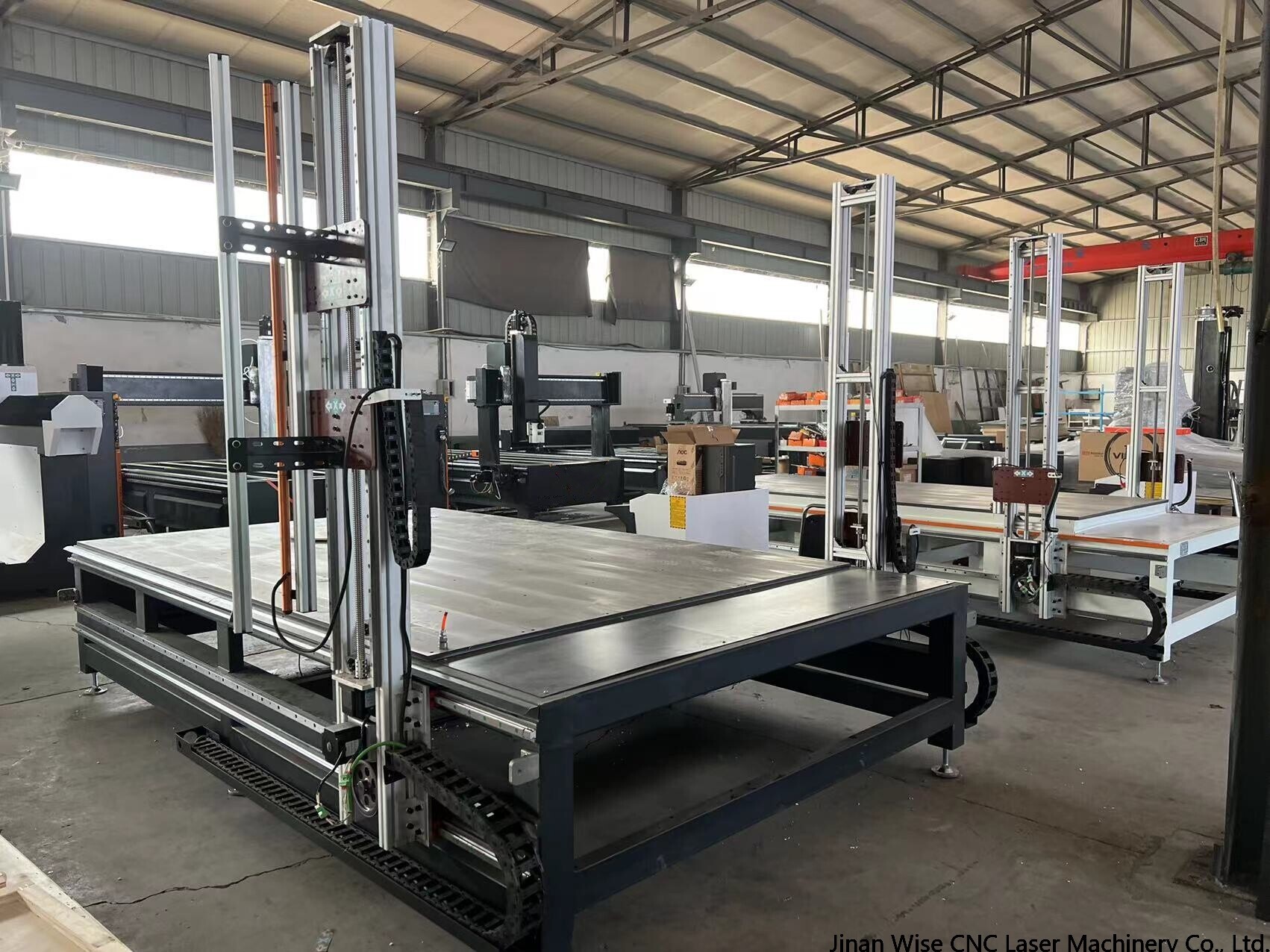

foam cnc cutter.jpg

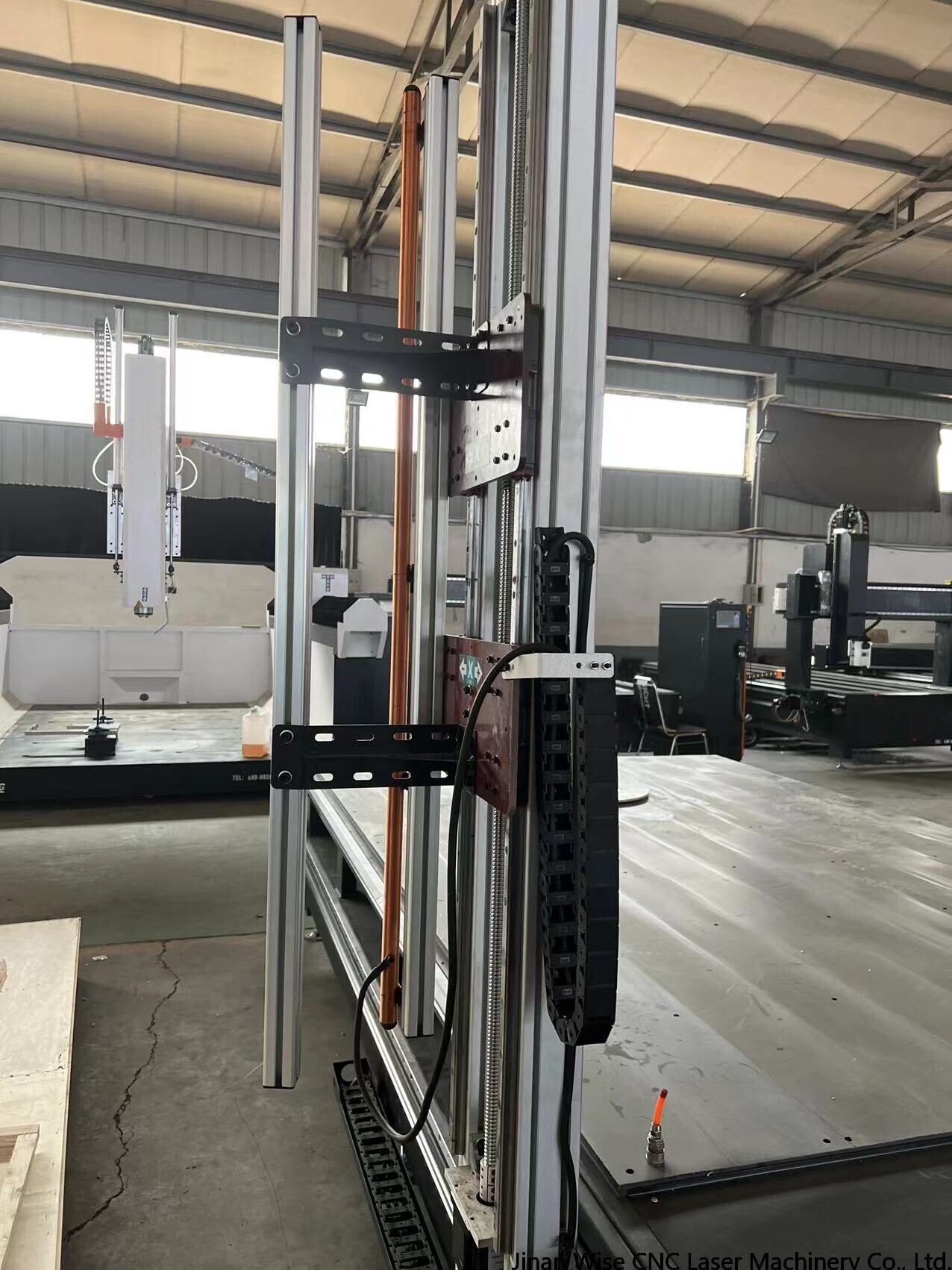

large hot wire foam cutter.jpg

Technical parameter of WS2130 foam cutter:

Description & Specifications
Cutting areaLength 3000mm*width 2100mm*height 1300mm (multi wire cutting)
Table surfacePVC table
Traveling Positioning Accuracy±0.03mm
Repositioning Positioning Accuracy±0.02mm
Working dpi±0.04mm
Rotating Speed0-6000mm/min
Machine StructureThick welded steel
CommandG-code*.u00*.mmg*.plt
Working voltageAC220V/20HZ
Weight with package850KGS
Package size1.6*4.7*1.4M
Control SystemMach3 with computer
Guide RailSquare guide
Humidity10%-90%(without condensation)
Temperature10-50℃
Gear boxSmall gear box
TransmissionBall screw
Net weight800KGS
Regulator10KW
RemarkEconomic
Synchronous wheel x,y5M,1:5
Synchronous belt5M-285
Synchronous wheel Z5M 20 wheel
Gear-wheelYCAA670
Gear shaft93
Control boxSeparate
SoftwareCAXA CAD
