Product Description

WS1360 professional industrial foam hot wire cutting machine is designed for industrial styrofoam cutting company, eps construction design shape cutting,  cutting length can reach 6 meter, this machine is with 1.3 meter copper pipe, can hang 20 pieces heating wire at one time, and finish 20 pieces cutting product with same design, especially construction building design cutting.

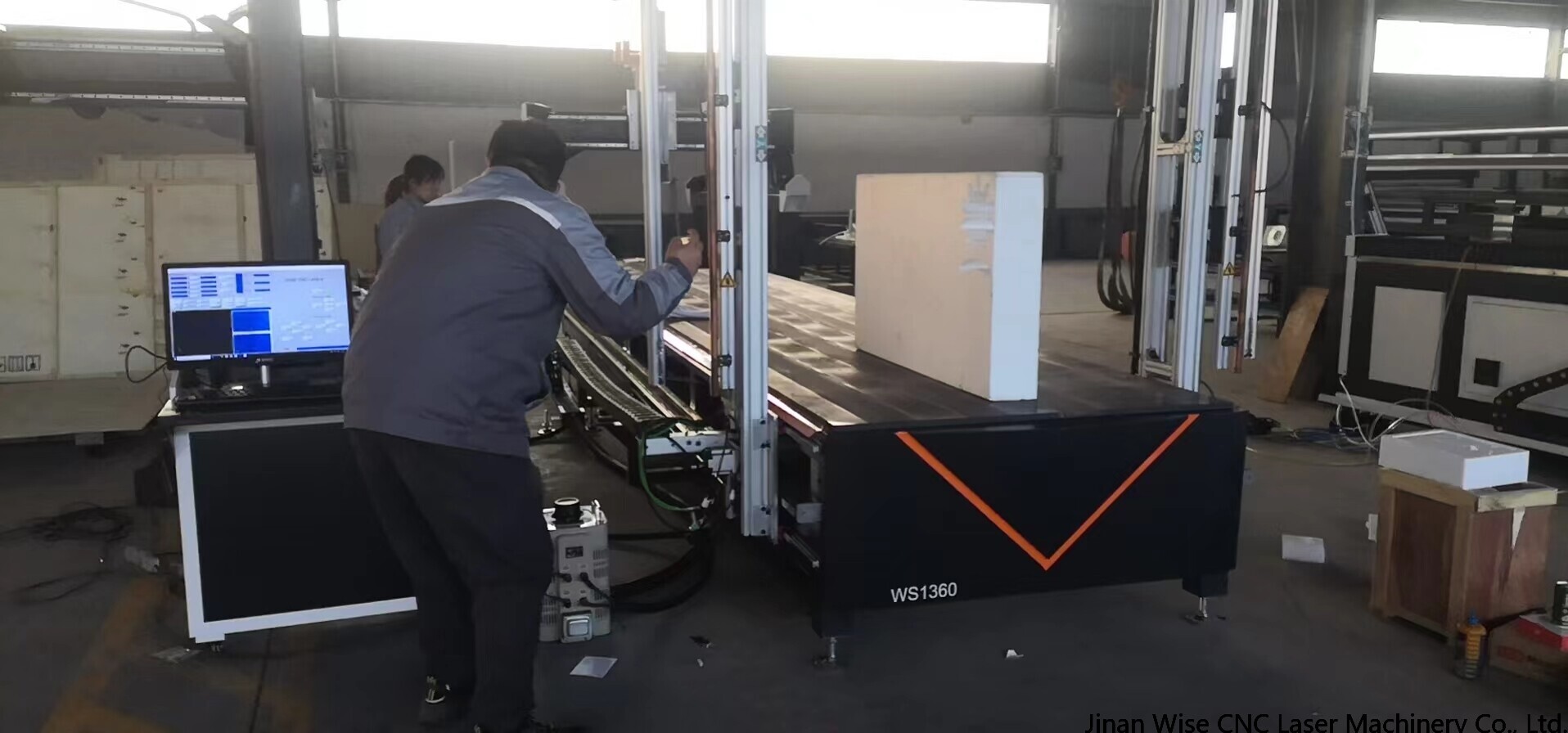

cnc eps foam cutting machine.jpg

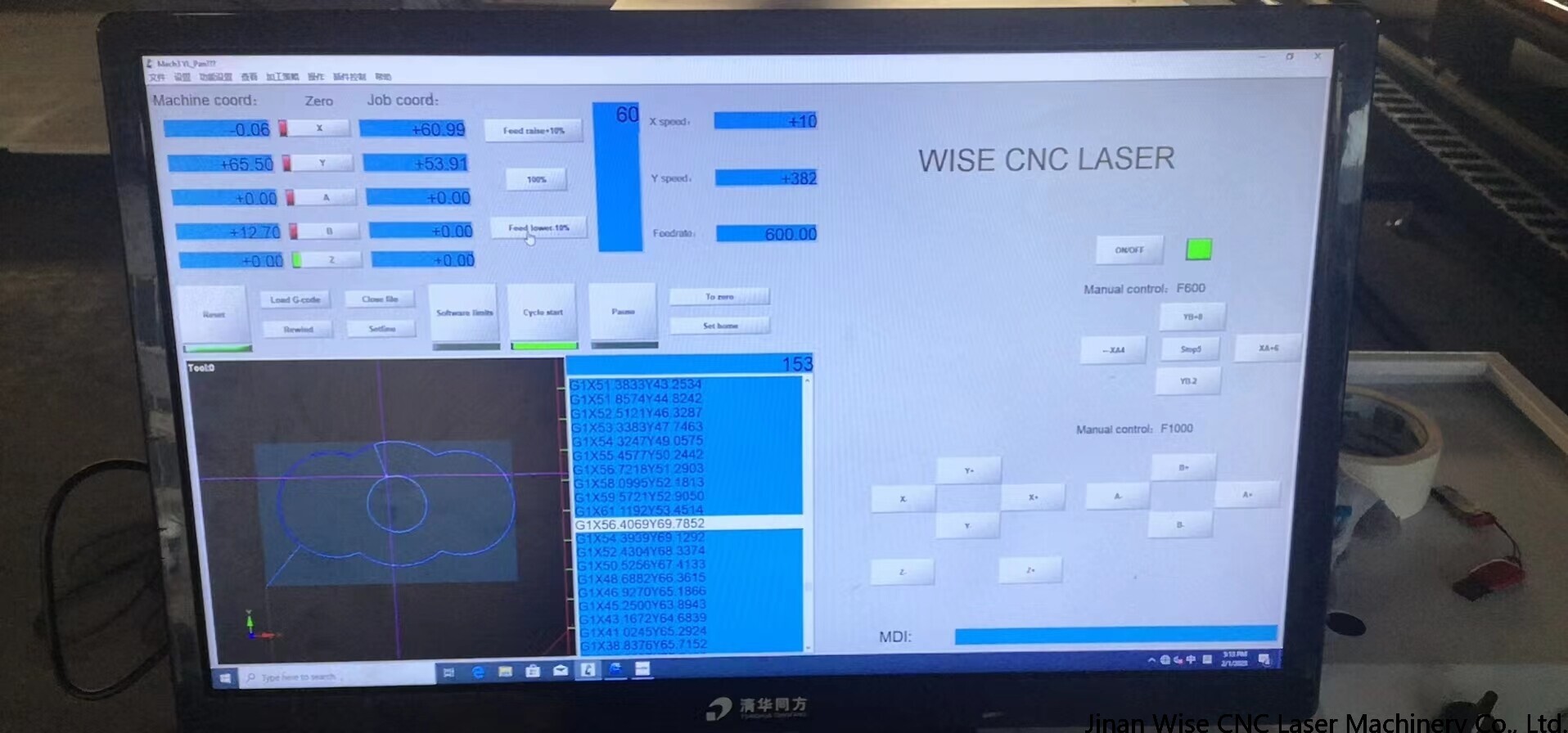

hot wire foam cutting cnc machine.jpg

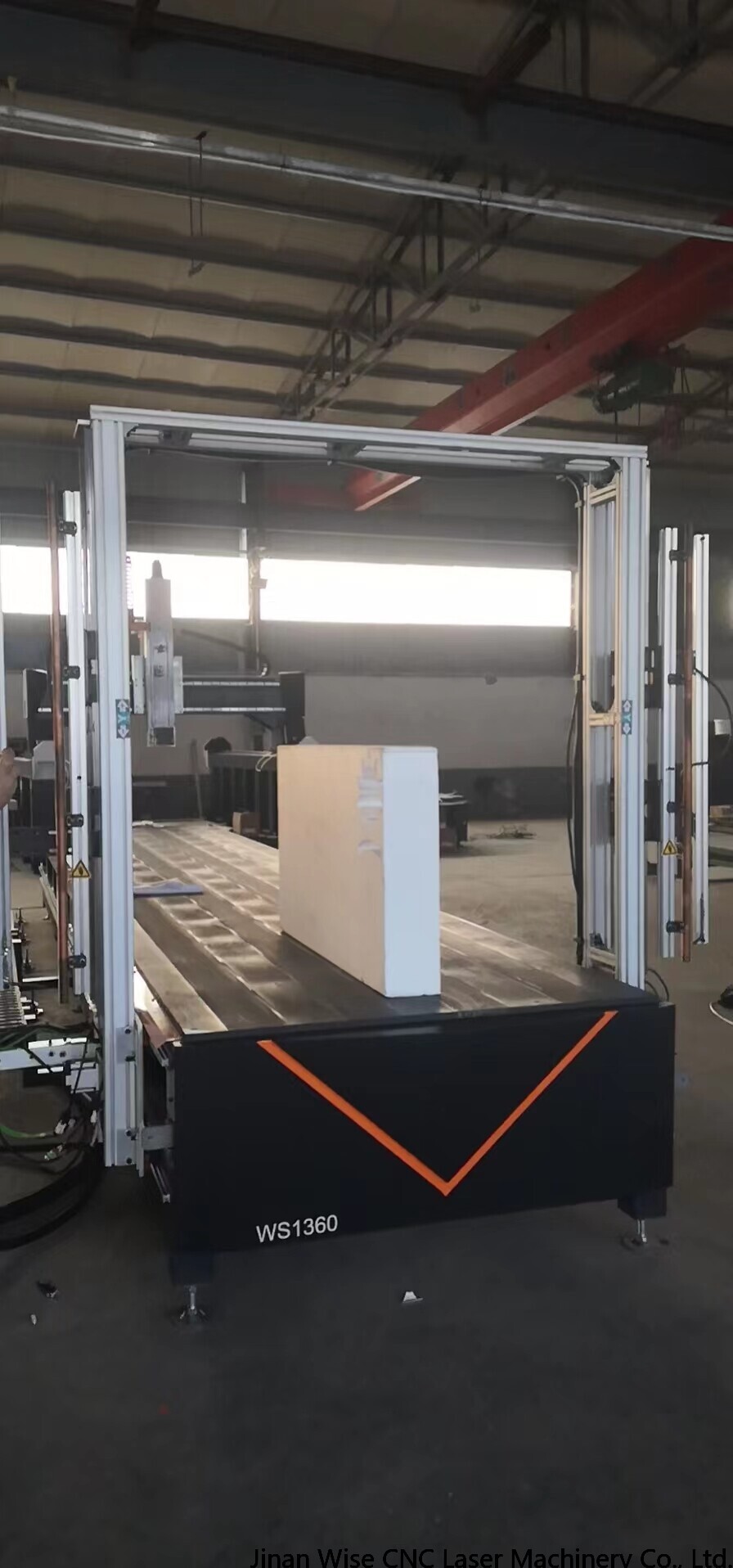

foam hot wire cutting machine.jpg

Description & Specifications of WS1360 hot wire cnc foam cutting machin
Cutting areaLength 6000mm*width 1300mm*height 600mm or so (use 1.3meter length copper pipe for multi wire)
Table surfacePVC table
Traveling Positioning Accuracy±0.03mm
Repositioning Positioning Accuracy±0.02mm
Working dpi±0.04mm
Rotating Speed0-6000mm/min
Machine StructureThick welded steel
CommandG-code*.u00*.mmg*.plt
Working voltageAC220V/20HZ
Weight with package850KGS
Package size1.7*6.7*1.1M
Control SystemMach3 with computer
Guide RailSquare guide
Humidity10%-90%(without condensation)
Temperature10-50℃
Gear boxSmall gear box
TransmissionRack pinion transmisson
Net weight800KGS
Regulator/transformer10kva big transformer for multi wire
Synchronous wheel x,y5M,1:5
Synchronous belt5M-285
Synchronous wheel Z5M 20 wheel
Gear-wheelYCAA670
DriverServo motor and driver
Control boxSeparate
SoftwareCAXA CAD


Video

Product Sample

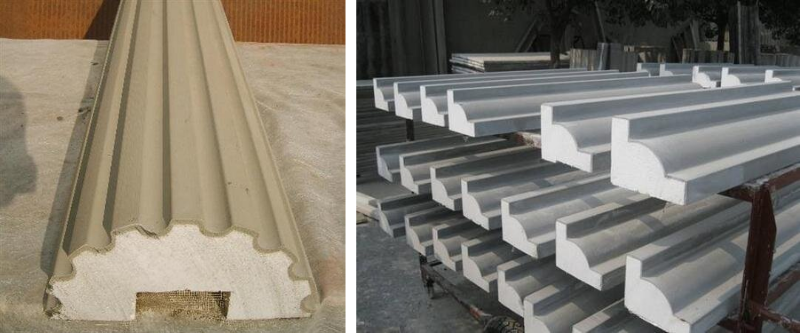

foam cnc cutter.png

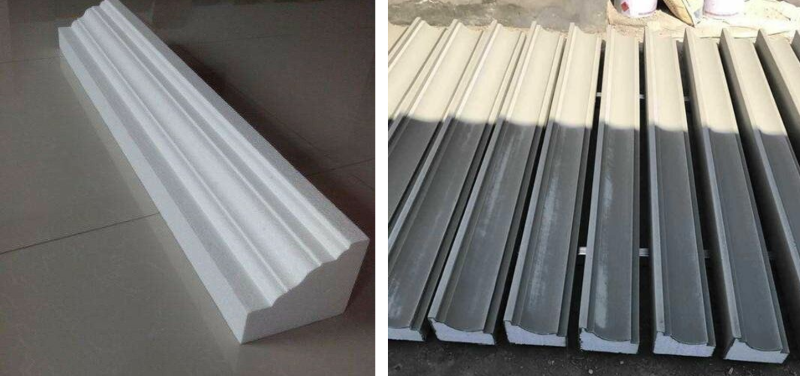

foam hot wire cutter.png

4 Axis WS3030 Hot Wire Foam Cutting Machine Sample.jpg

4 Axis WS1330 Hot Wire Foam Cutting Machine Sample.jpg
