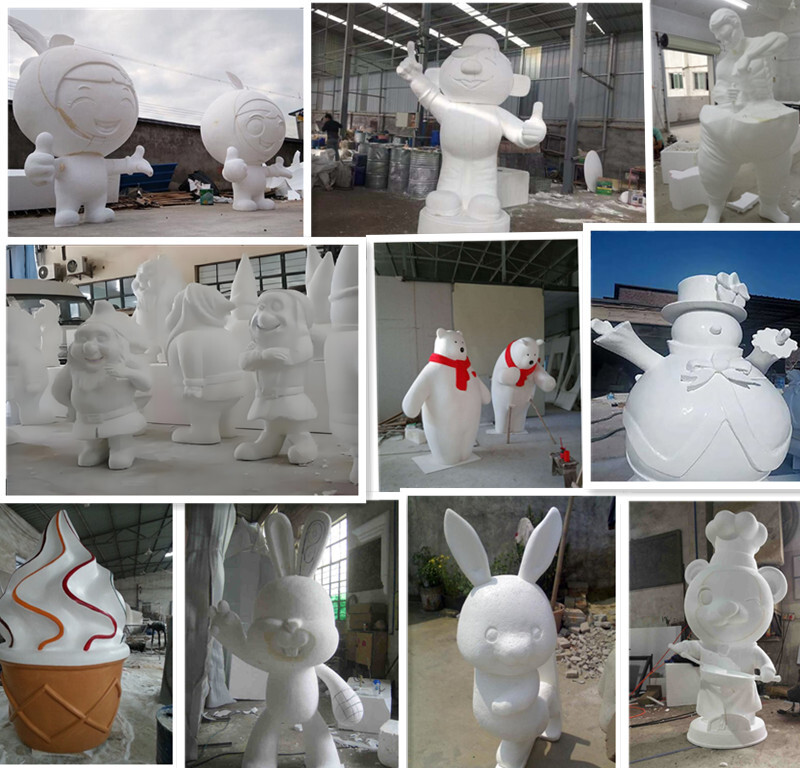

Application of 3d foam sculpture cnc milling machine:

3d foam statue, 3d Styrofoam sculpture, 3d eps foam statue. Outdoor foam statue, displaying sculpture etc.

一、Main Parameter of 5 axis foam cnc router:

1、Effective working size：diameter 2000 X * 2500mm Height

2、X axis：2500mm

3、Y axis：2000mm

4、Table move：1500mm

5、Rotary diameter：2000mm

6、Spindle speed：3000-18000 rpm

7、Feeding speed：1-6000mm/min

8、Fast feeding speed：

X axis：6000mm/min

Y axis：6000mm/min

Z axis：6000mm/min

9、System dpi：±0.001

10、File format：G code

11、working voltage：AC380V/50HZ

12、Driving system：Servo driver and motor

13、Machine frame：whole thick welded steel frame

二、Main spare parts of 3d foam cnc milling machine:

1、Control system： Taiyuan 5 axis controller

2、Driving system: 1.5KW China servo motor and driver

3、Reducer：high precision planetary reducer

4、Guiding system：Taiwan high precision 30# square guide rail

5. Z  axis ball screw：Taiwan TBI ball screw

6、Transmission：high precision 1.5m helical rack pinion

7、Inverter： Fuling 7.5KW inverter

8、Spindle： air cooling 6KW spindle

9、Control cabinet：classic independent cabinet

10、Motor cable：Servo original motor coding cable

11、Transmission cable：CNC special high-flexible shielded wire

12、Protection type：XYZ axis dust proof

13、Lubricating system：Automatic lubricating system

14、Main electric parts：china well-known brand

15、Spare parts：professional tools and bits for 3d foam statue and foam sculpture
